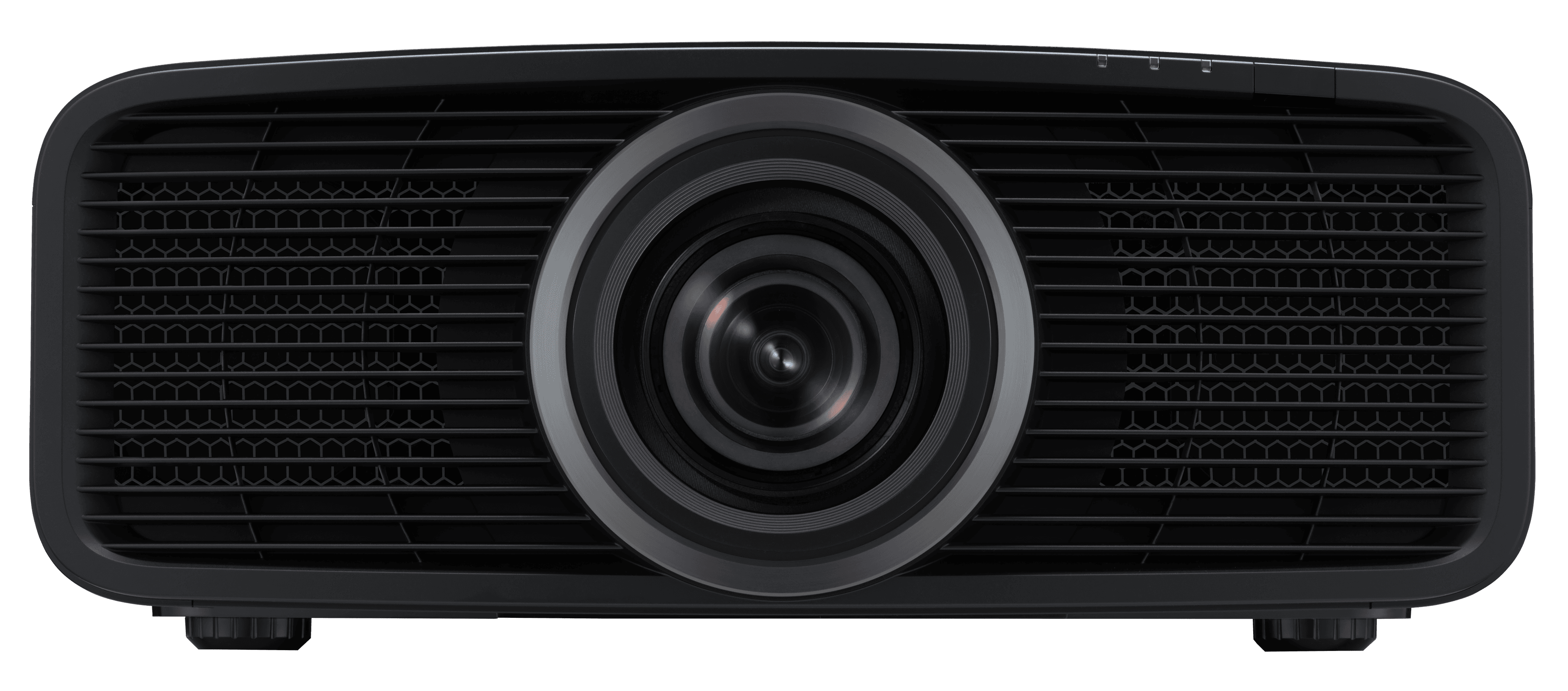

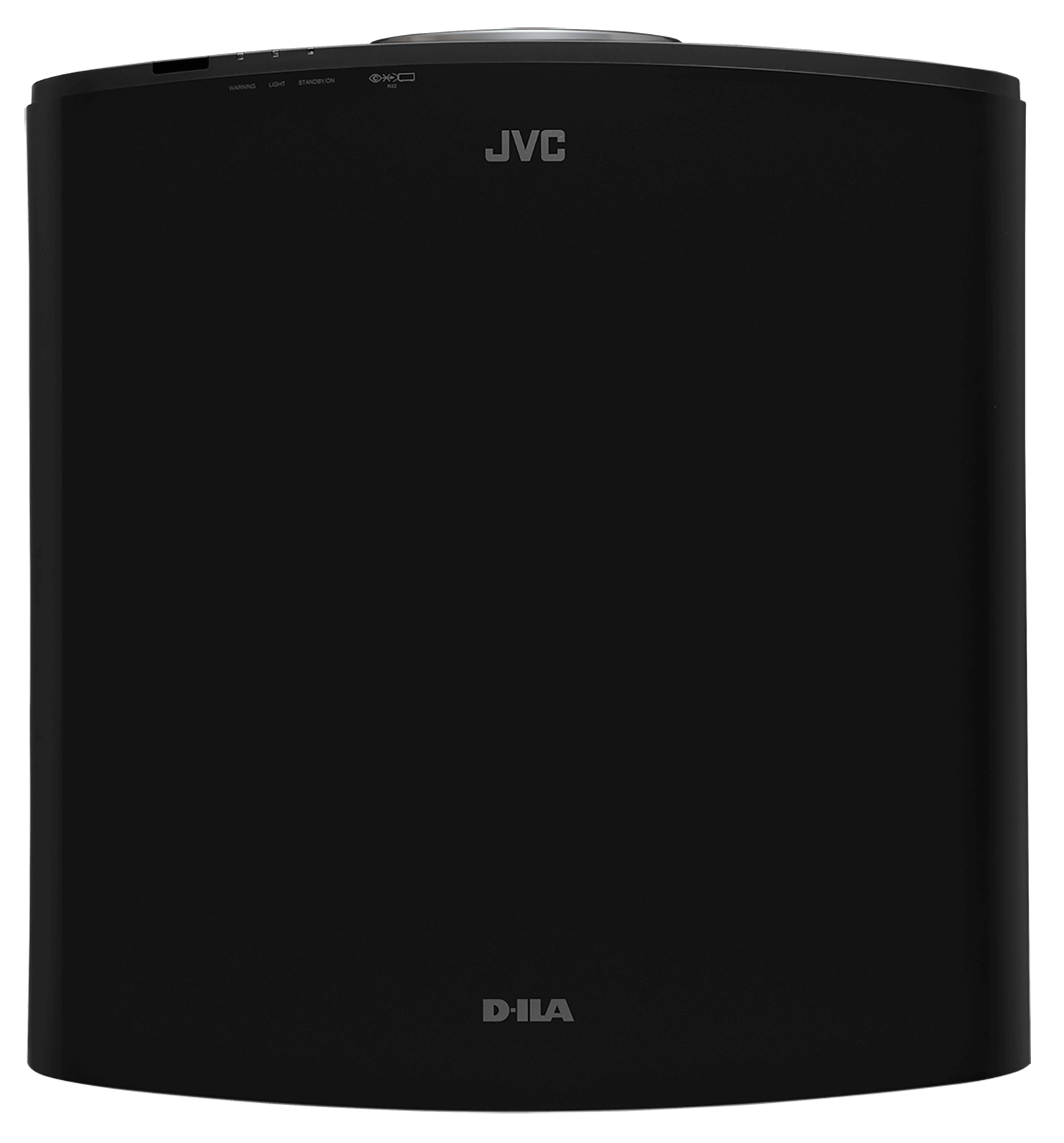

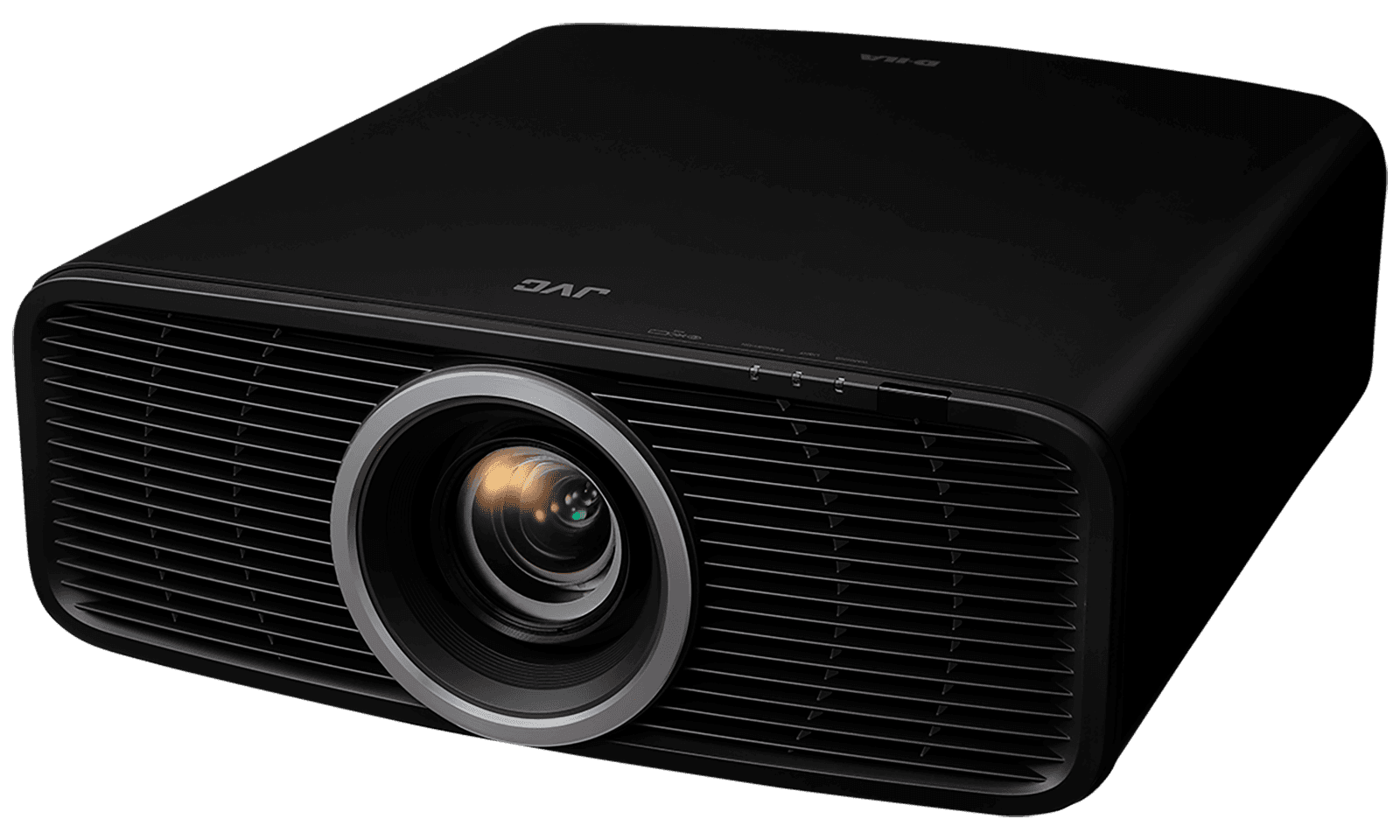

JVC DLA-NZ700

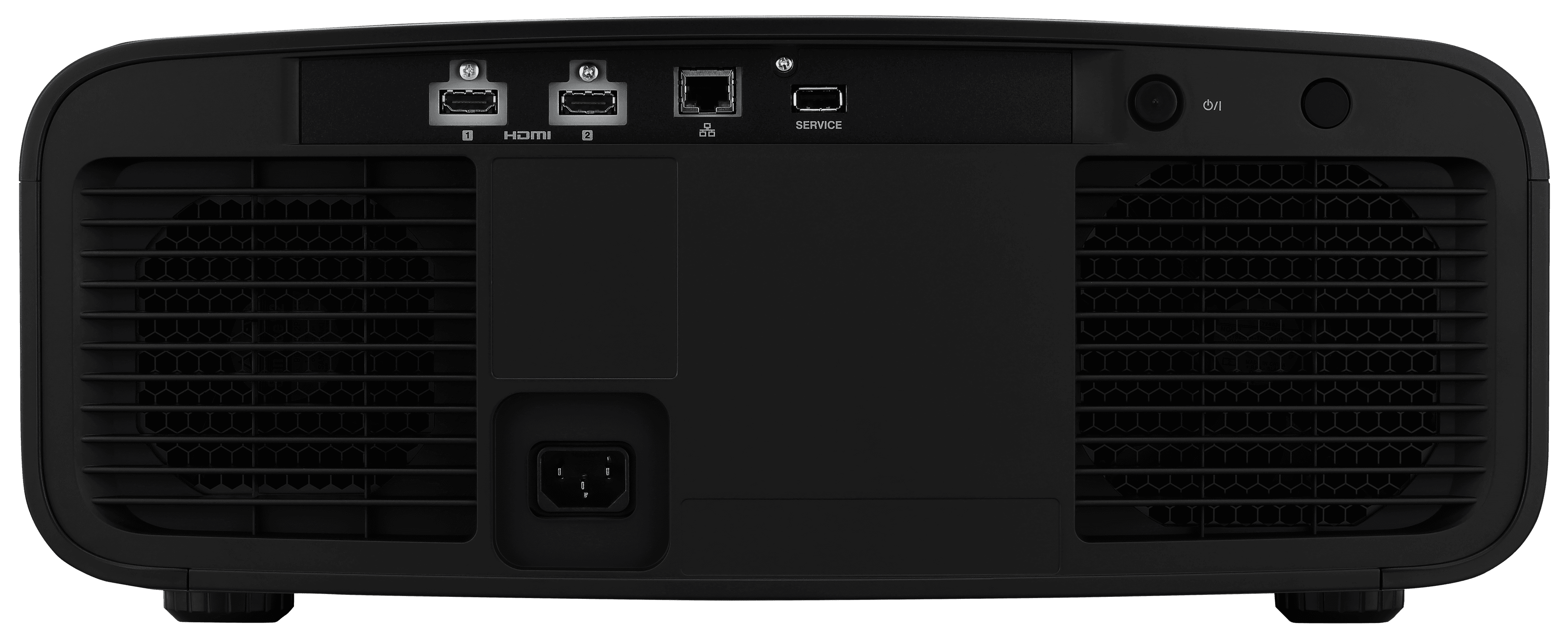

DLA-NZ700 - D-ILA Projector Device D-ILA Technology Yes Chip Type 3rd Generation 0.69-inch 4K D-ILA device Native Resolution 4096 x 2160 Number Of Chips 3 Display Resolution 4096 x 2160 Light Source Laser [1] Yes Type BLU-Escent Laser Diode Life Time (Standard Mode) 20000 hours Picture Brightness 2300 lm Dynamic Contrast ∞ : 1 Native Contrast 80000 : 1 Dynamic Light Power control Yes Modes Low,High,Balance,Off Manual Aperture Yes Range -15 (stops down) to 0 (opens up) DCI-P3 Color Gamut Yes 100% REC 709 Yes Color Bit Depth 12 bit ISFccc Certification [2] Yes HDR HDR10 Yes HDR10+ [3] Yes Frame Adapt HDR [4] Yes HLG Yes Auto Tone Mapping Yes Mastering Info Display Yes Info data MaxCLL, MaxFALL , DML HDR Picture Modes Deep Black Tone Control Yes Lens Zoom 1.6 x Throw Ratio 1.24 - 2.04 (16:9) Diameter 80 mm Material Build 15-element, 11-group. Lens Shift Yes Range Horizontal ± 28 % Range Vertical ± 70 % Motorized Zoom Yes Motorized Shift Yes Motorized Focus Yes Projection Display size (diagonal) 60 - 200 inch Memory Function Yes Number of user presets 5 Lens Cover Yes HDMI HDMI [6] Yes Number of Inputs 2 Data Rate 32 Gbps HDCP Version 2.3 4K60P signal input Yes Video Signal range 480p, 576p, 720p 60/50, 1080p 60/ 50/ 30/ 25/ 24, 3840 x 2160p 60/ 50/ 30/ 25/ 24, 4096 x 2160p 60/ 50/ 30/ 25/ 24 PC Signal range 640x480, 800x600, 2048x1080, 1600x1200, 1920x1200, 2048x1536, 2560x1440 Input Level Adjustment Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255) Color Space Range Auto/ YCbCr444 / YCbCr422 / RGB EDID Modes Standard, Option1 , Option2 (older hardware may need to use Option1 or Option2 settings) Connections Connector Power Connector LAN Yes Connector RJ45 Connector Service Yes Connector USB (Type A) for firmware update or backup Picture Settings Picture Modes Natural, Cinema, Filmmaker, Vivid, isf(Day), isf(Night), Frame Adapt HDR, HDR10, HLG, 4 User modes Color Temperatures Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2 Gamma Processing Depth 12 bit Gamma Adjust HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Vivid, 3 Custom modes Color Management 6-Axis adjustable CMS MPC Yes Filmmaker Mode [7] Yes Low Latency Mode Yes Clear Motion Drive Yes Auto Calibration Yes Optional Probe needed Yes Installation Mode Yes Number of modes 5 Included settings Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect Anamorphic Modes 4 Modes (A, B, C, D) Control4 SDDP Yes Power & Environment Power Requirement AC100-240V, 50/60Hz Projector in Use 280W Standby Eco-mode: 0.25W Network Standby 1.40W (LAN) Eco Mode Yes Standby Timer Yes Operating Temperature 5°C to 35°C Operating Humidity 20% to 80% Installation Angle Horizontal +/- 10 degree / Vertical +/- 10 degree Installation Height Below 2,000 m In the box Remote Control Yes, RM-MH27 Quick Guide Yes Power Cord Yes Batteries Yes, 2 x AAA-size batteries Dimensions & Weight Product Dimensions (WxHxD) 450 x 180 x 479 (mm) Product Weight 15.2 Kg Package Dimensions (WxHxD) 585 x 361 x 600 (mm) Package Weight 18.9 Kg
